TP LINK TL POE 150 S POE INJECTOR

TP-Link TL-POE150S PoE Injector – Simple Power over Ethernet for IP Devices

The TP-Link TL-POE150S PoE Injector is a compact, plug-and-play device designed to deliver both power and data over a single Ethernet cable to IEEE 802.3af-compliant devices, such as wireless access points, IP cameras, and VoIP phones. It’s the easiest way to add PoE capability to your existing non-PoE network equipment.

Now available at Future IT, this PoE injector is ideal for small businesses, surveillance setups, and remote networking environments where electrical outlets are limited or difficult to install.

Simplified PoE Integration

Add power capability to your Ethernet line with ease. The TL-POE150S eliminates the need for separate power adapters, allowing a clean, centralized installation without clutter or mess.

802.3af Compliant – Broad Compatibility

Fully compliant with the IEEE 802.3af standard, the injector works with all 802.3af-compliant powered devices (PD), including:

• Wireless Access Points (TP-Link, Ubiquiti, Cisco, etc.)

• IP Surveillance Cameras

• VoIP Phones

• Network Video Recorders

• Other PoE-enabled devices

Pair it with TP-Link’s TL-POE10R PoE Splitter for devices that need separate power and data connections.

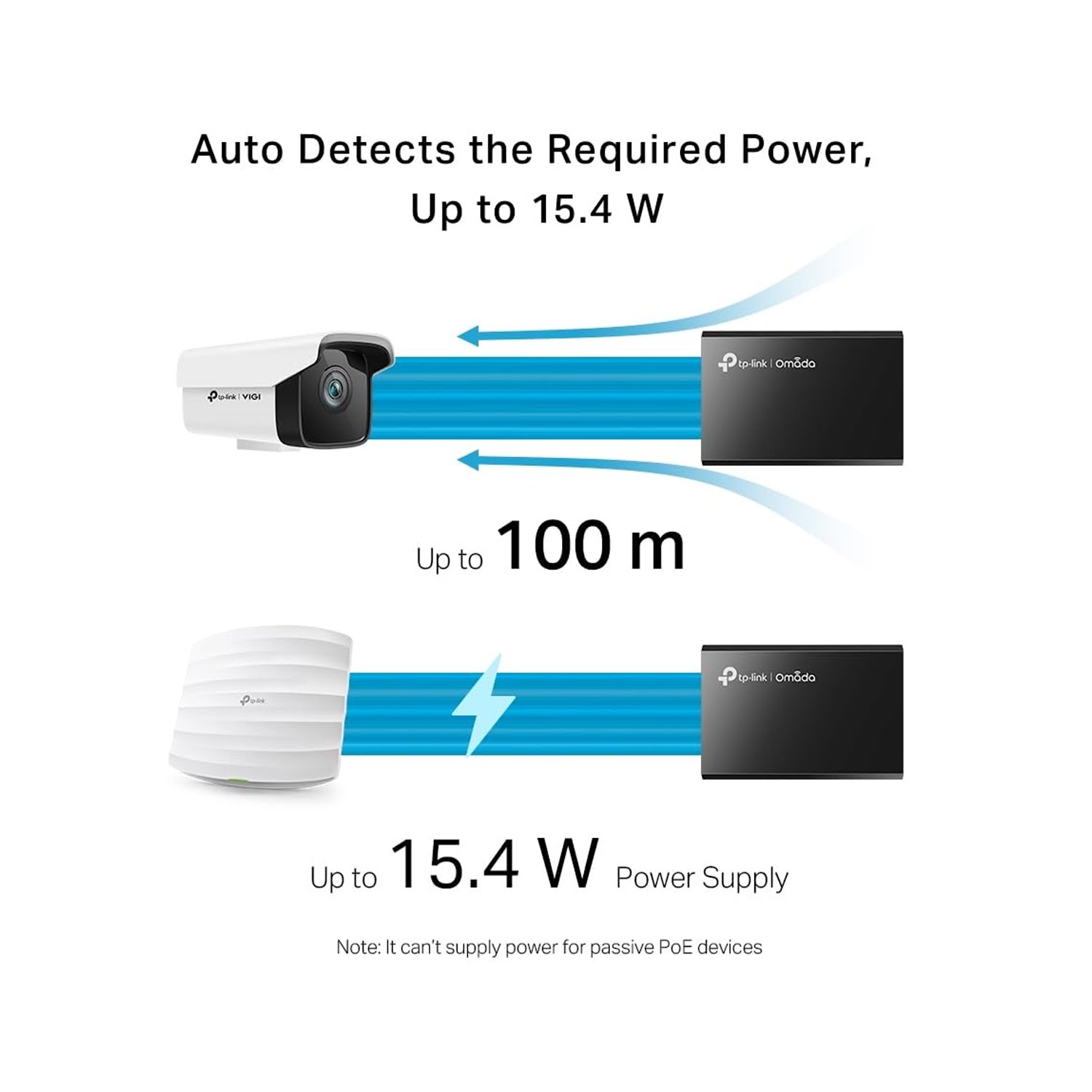

Up to 100 Meters Transmission

The TL-POE150S delivers data and power up to 100 meters (328 feet), enabling flexible placement of network devices without proximity to power outlets. Perfect for ceiling-mounted APs or outdoor cams (with a waterproof enclosure).

Plug-and-Play Operation

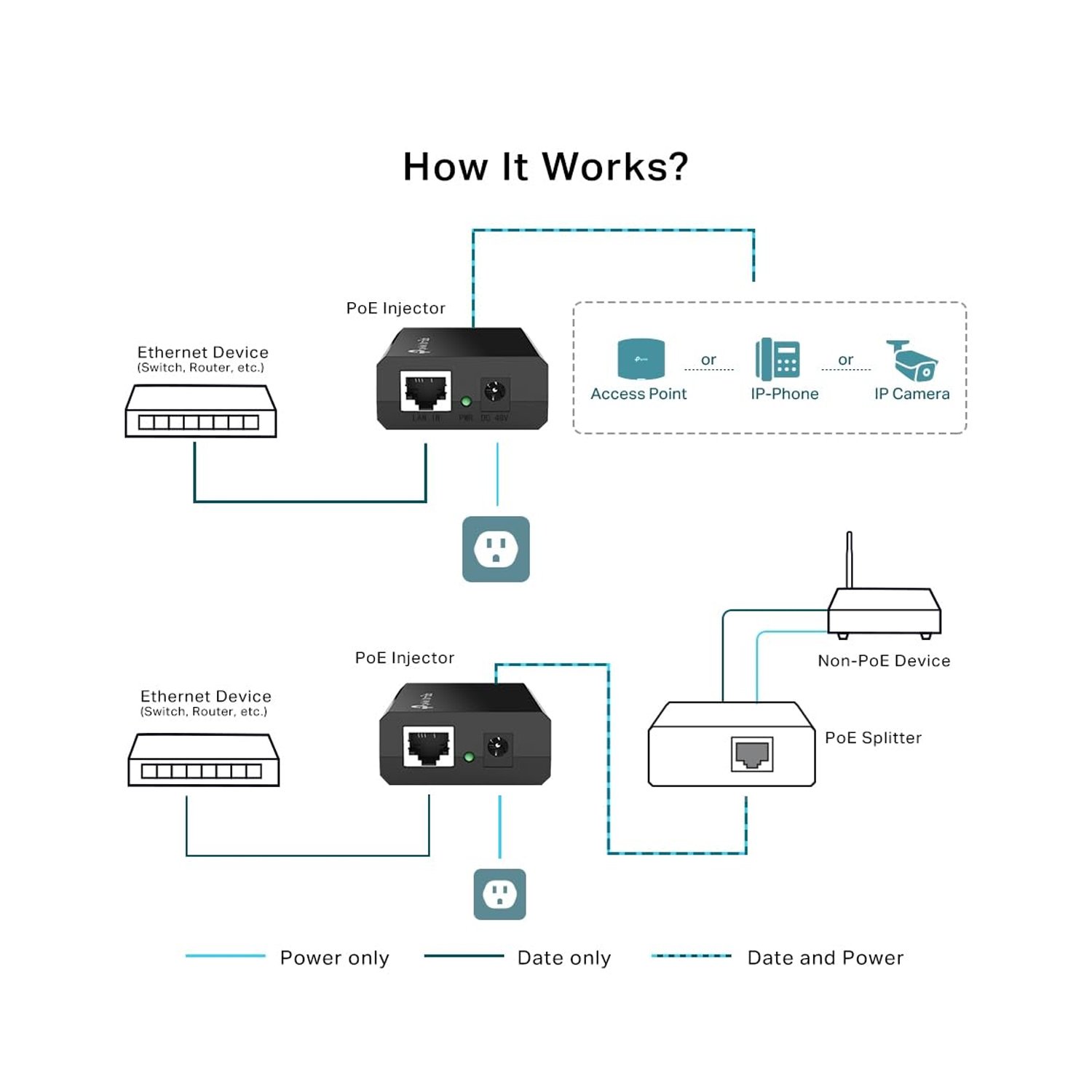

No software or configuration required—just connect the injector between your router/switch and the powered device. It automatically detects the power requirements and supplies the correct voltage and current.

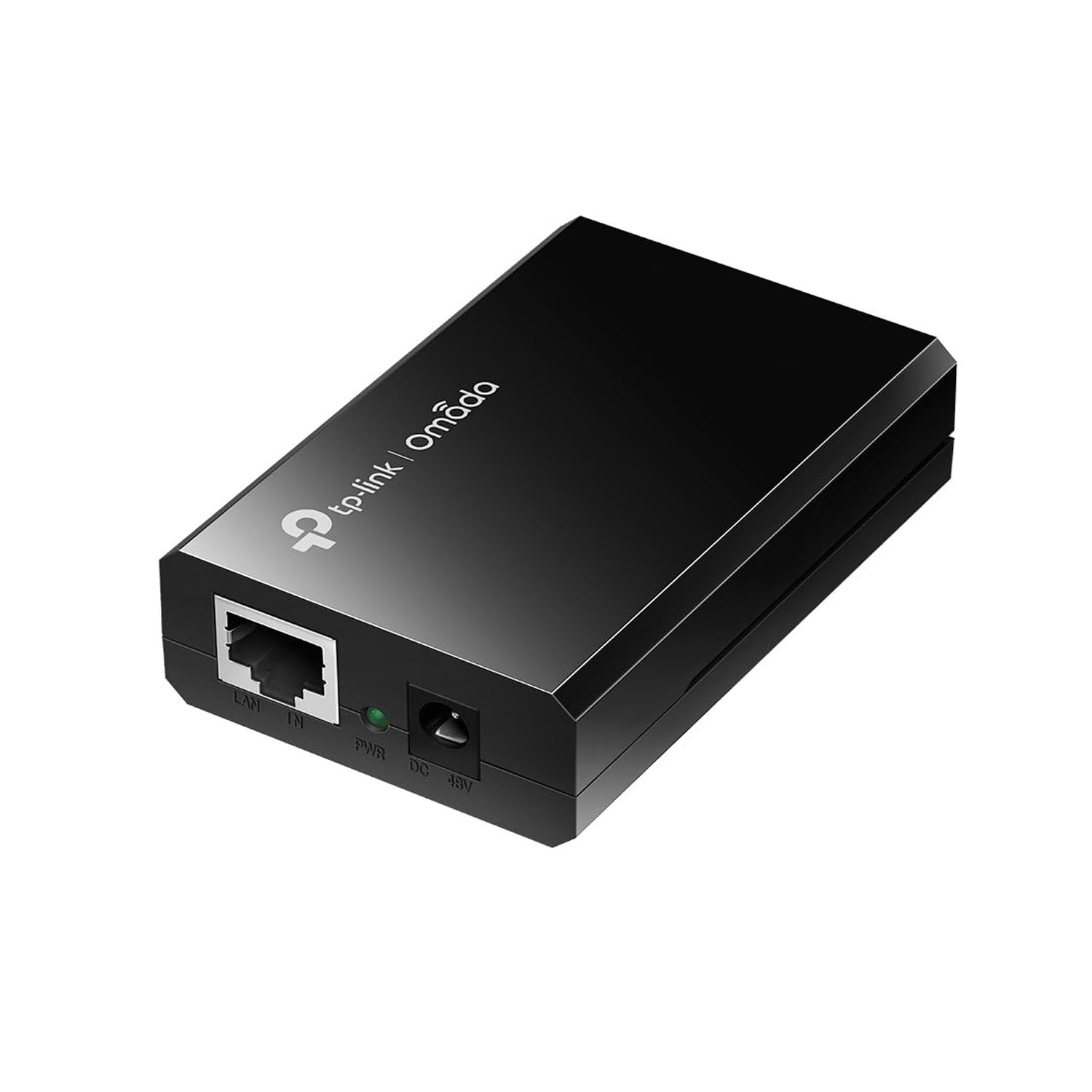

Compact, Durable Design

Built with a sturdy plastic enclosure, the device is compact enough to fit in tight networking spaces. LED indicators for Power and PoE Status make troubleshooting quick and easy.

External Resource Link

Visit TP-Link Official TL-POE150S Product Page

🟩 Specifications

• Model: TP-Link TL-POE150S
• PoE Standard: IEEE 802.3af
• Input: 100–240V AC, 50/60Hz
• Output Power: 15.4W max

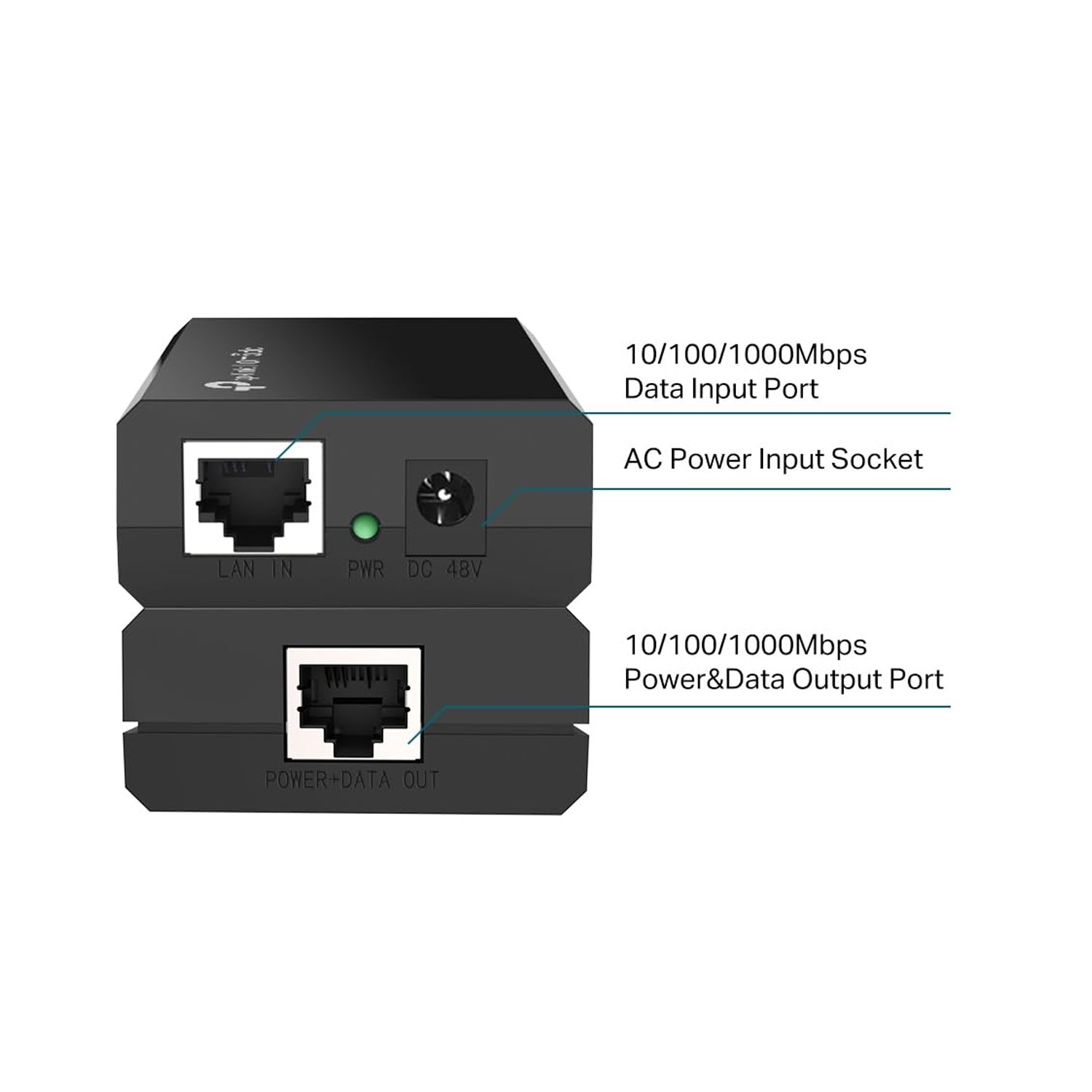

• Interface: 1× RJ45 LAN, 1× RJ45 PoE Out
• Transmission Distance: Up to 100 meters (328 ft)
• LED Indicators: Power, PoE Status
• Dimensions: 80.8 × 54 × 24 mm
• Operating Temp: 0°C~40°C
• Certification: CE, FCC, RoHS
• Warranty: 3 Years (varies by region)

🟩 FREQUENTLY ASKED QUESTIONS (FAQ)

Q: What’s the main use of this PoE injector?
A: It powers PoE devices like access points, IP cameras, and VoIP phones through a single Ethernet cable.

Q: Does this work with non-TP-Link PoE devices?
A: Yes, it’s IEEE 802.3af compliant and works with all compatible devices.

Q: Can I use this with a non-PoE switch?
A: Absolutely. Just connect your non-PoE switch to the injector’s data port, and the injector sends power + data through the PoE Out port.

Q: Is this suitable for outdoor use?
A: The injector itself should be used indoors, but it can power outdoor devices through PoE, provided they are weatherproof.

Q: Is a power cable included?
A: Yes, the package includes a power adapter for direct wall outlet connection.
