TP LINK TL-SF1009P 65W 10/100 8 PORTS POE SWITCH

TP-Link TL-SF1009P 8-Port 10/100Mbps PoE Switch – Reliable Power & Data in One

Upgrade your surveillance and networking systems with the TP-Link TL-SF1009P, a 9-port 10/100 Mbps unmanaged switch that includes 8 PoE+ ports with a 65W total power budget. Designed for small business, surveillance, and office environments, this compact yet powerful switch combines simplicity with performance.

Now available from Future IT, the TL-SF1009P is a true plug-and-play solution for delivering both power and data over a single cable.

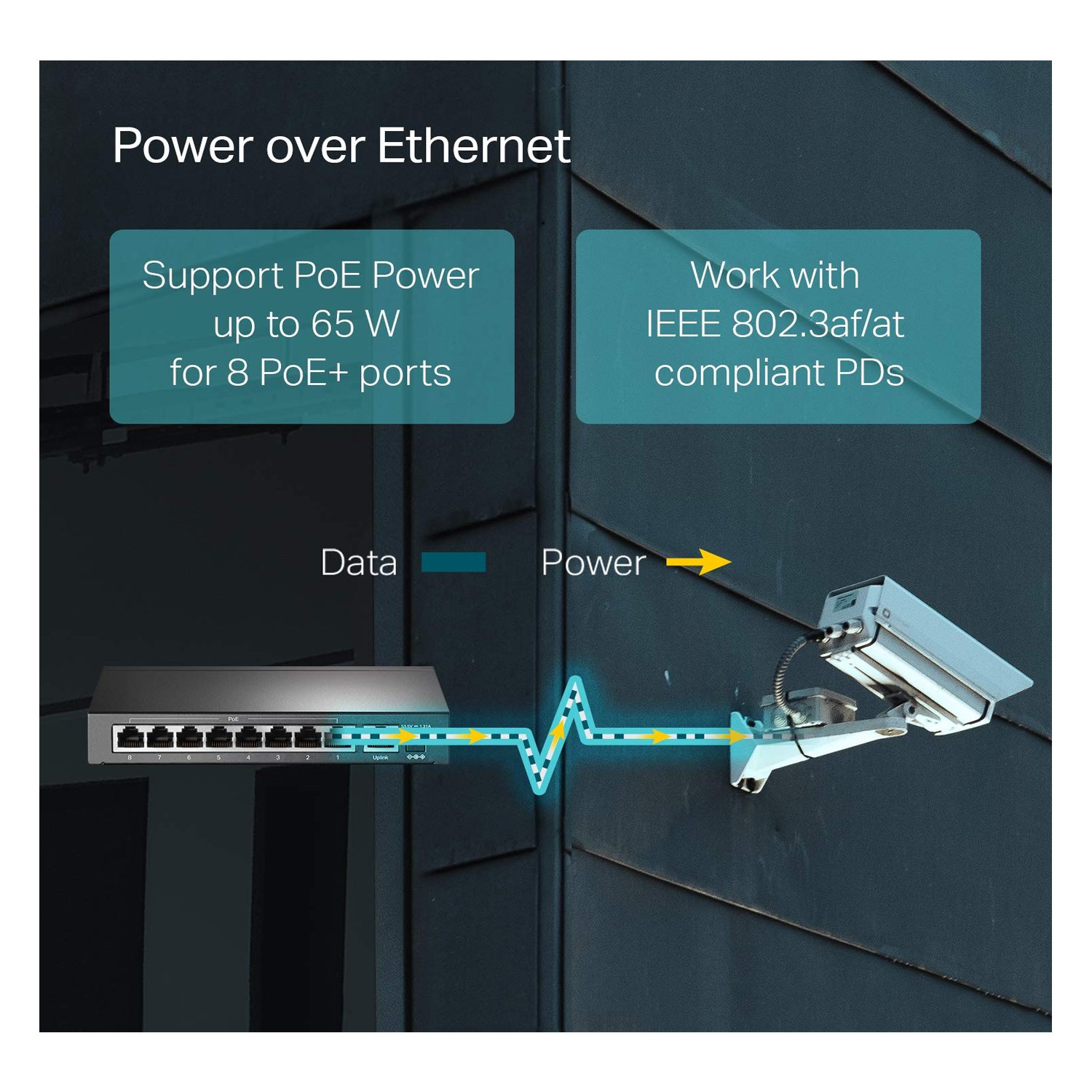

8 PoE+ Ports with 65W Budget

This switch supports the IEEE 802.3af/at PoE standard, delivering up to 30W per port and a total of 65W across all PoE ports. Perfect for:

• IP Cameras

• Wireless Access Points

• VoIP Phones

• IoT Devices

With 8 PoE ports, you can power and connect your devices directly—no need for separate power supplies or wall outlets.

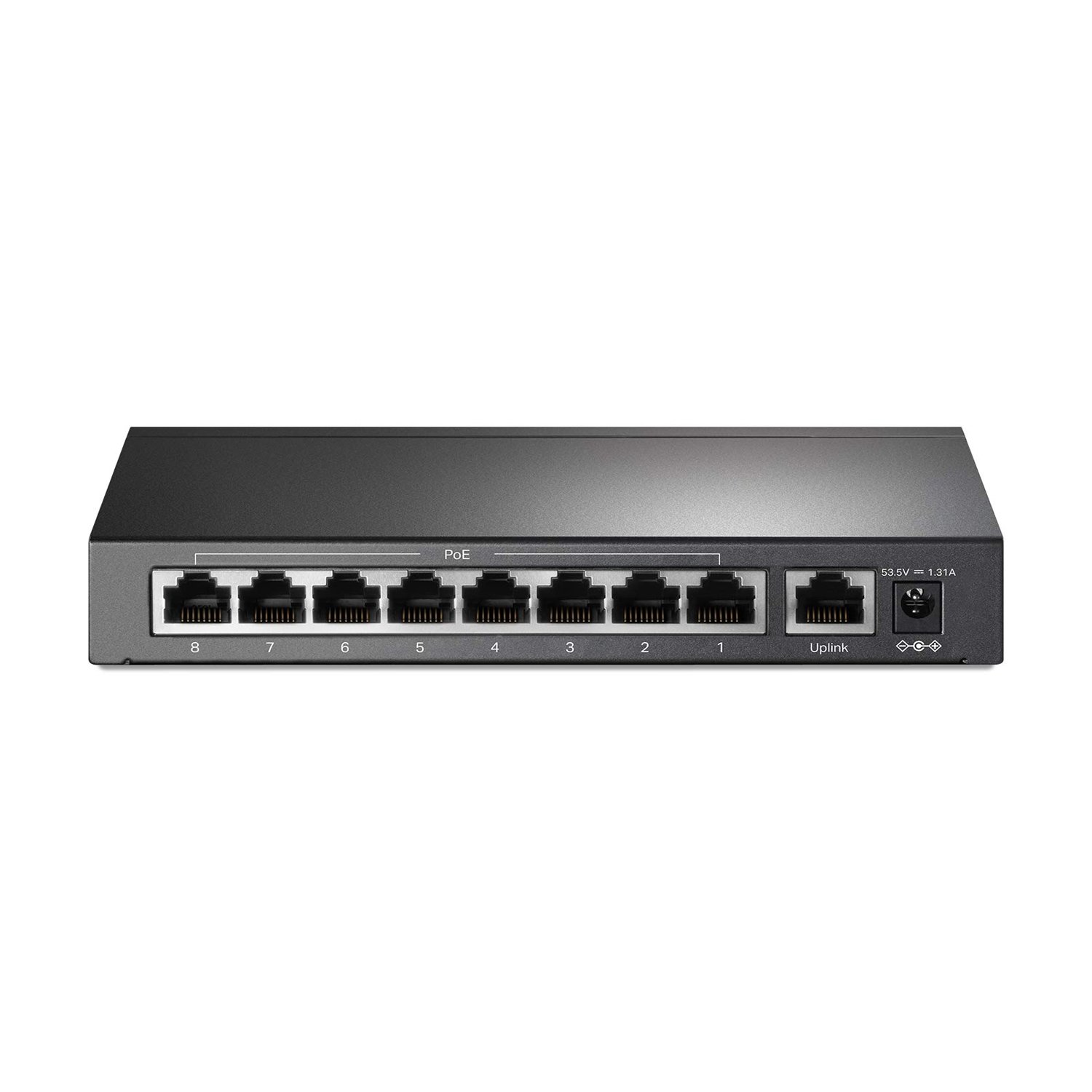

9 Ports Total (8 PoE + 1 Uplink)

• Ports 1–8: PoE-enabled 10/100 Mbps ports

• Port 9: Uplink port for connecting to router/NVR/core switch

The uplink port ensures uninterrupted data backhaul even when all 8 PoE ports are in use.

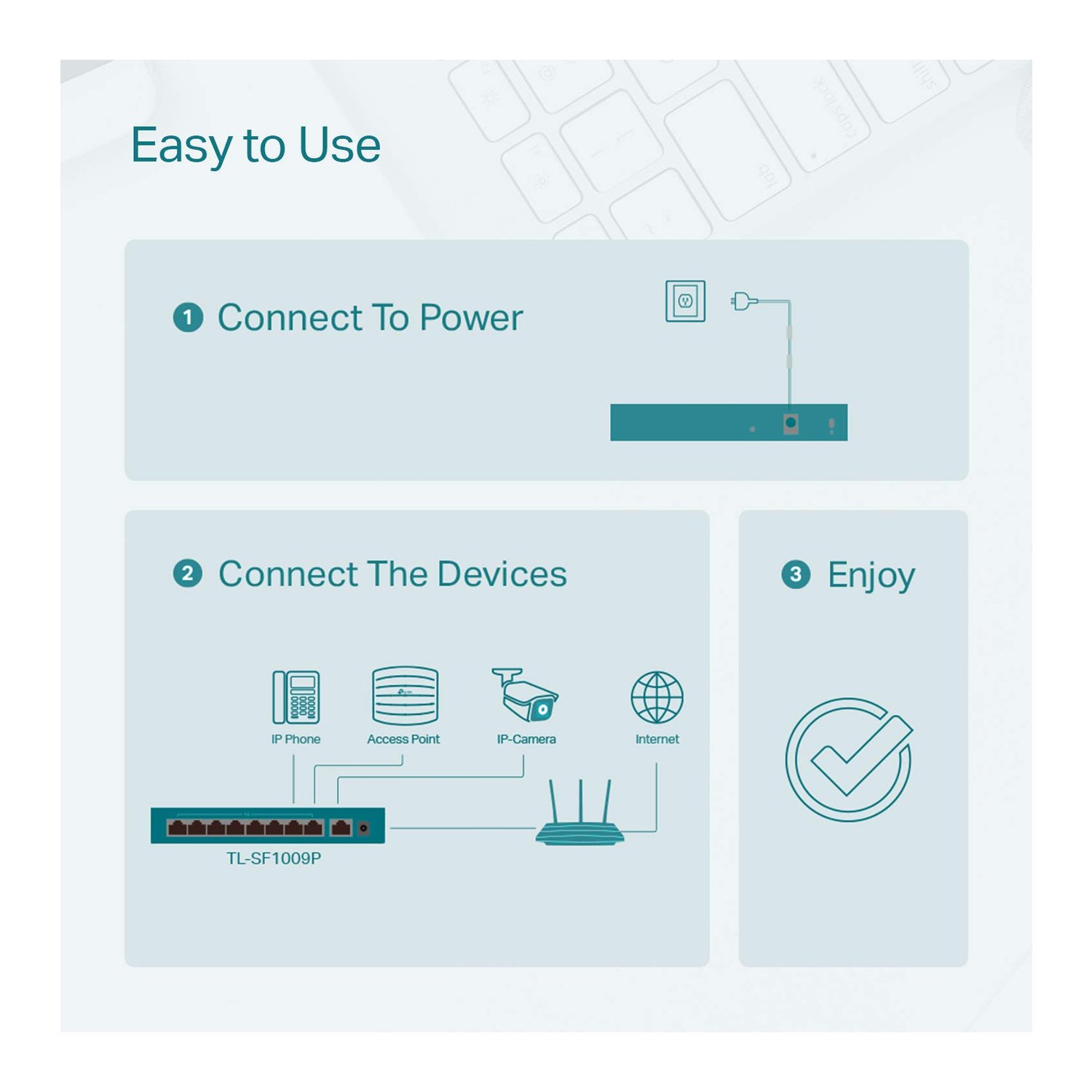

Plug-and-Play Simplicity

No configuration or software required. Just plug in your devices and go. The switch detects and powers compatible devices automatically, making installation fast and hassle-free.

Extended Mode – Up to 250m Transmission

Enable Extended Mode via the hardware switch to boost PoE transmission up to 250 meters at 10 Mbps. Ideal for surveillance setups needing long-distance power and data.

Intelligent Power Management

When the power budget is exceeded, intelligent PoE management automatically cuts off lower priority ports to protect the switch and connected devices.

Durable Metal Housing

Designed with a rugged metal case, the TL-SF1009P is built for long-term reliability. It features fanless design for silent operation and desktop or wall-mount installation.

External Resource Link

Visit Official TP-Link TL-SF1009P Product Page

🟩 Specifications

• Model: TL-SF1009P
• PoE Standard: IEEE 802.3af/at
• Total PoE Budget: 65W
• PoE Ports: 8× 10/100 Mbps (RJ45)
• Uplink Port: 1× 10/100 Mbps
• Switching Capacity: 1.8 Gbps
• MAC Address Table: 2K
• Extended Mode: Up to 250m at 10 Mbps
• Fanless: Yes
• Mounting: Desktop or wall mount
• Housing: Metal
• Power Supply: External
• Dimensions: 209 × 126 × 26 mm

🟩 FREQUENTLY ASKED QUESTIONS (FAQ)

Q: Can I use this switch for IP camera systems?
A: Yes, it’s perfect for powering and connecting up to 8 IP cameras with one uplink to the NVR or router.

Q: What happens if the power budget exceeds 65W?
A: The switch will intelligently disable lower-priority PoE ports to protect the system.

Q: Can it support long cable runs?
A: Yes, in Extended Mode, PoE transmission is supported up to 250 meters at 10 Mbps.

Q: Is this a managed switch?
A: No, this is an unmanaged switch – plug and play with no configuration required.

Q: Is it silent during operation?
A: Yes, the fanless design ensures completely silent operation.
